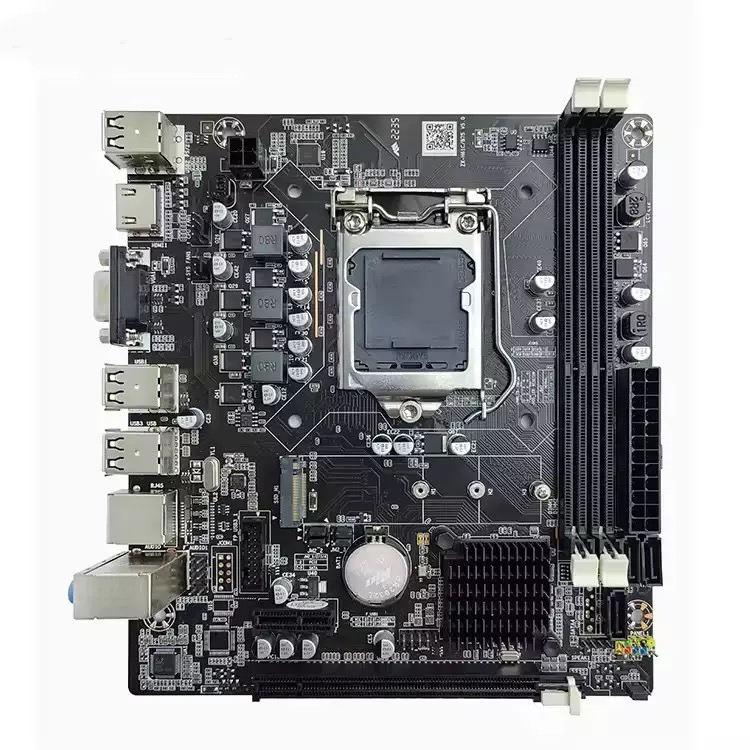

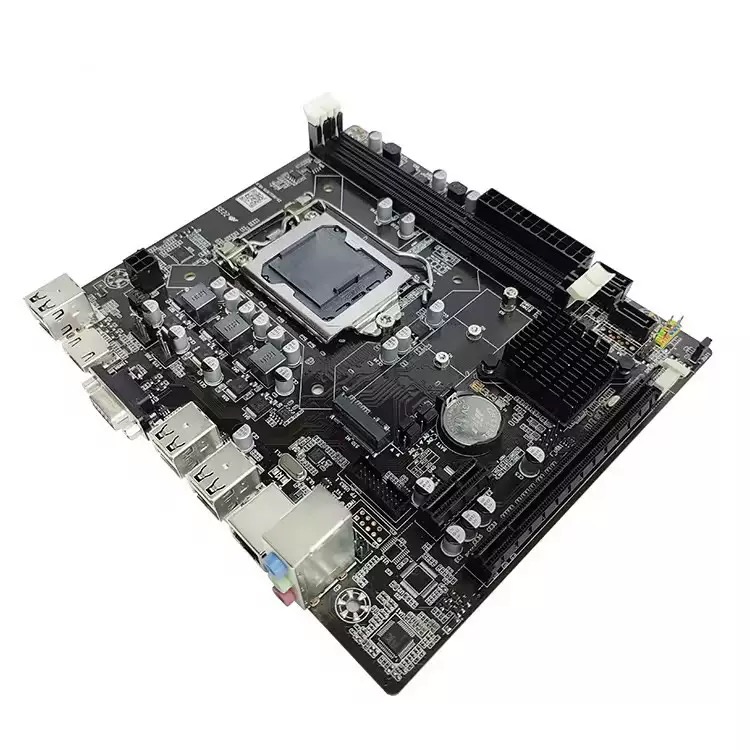

New Desktop Computer Motherboard LGA 1155 Pc Mainboard H61 DDR3 with Best Price for I3/I5/I7 Series
Factory manufactuering, 20pcs each carton with cable and backplate.
application
socket type
chipset
memory type
form factor
memory channel
maximum ram capacity
ports
graphics card type
hard drive interface
memory bank
chipset manufacturer
cpu type
with cpu
private mold
item condition
products status
package
place of origin
brand name
Product Name
Condition
CPU Support
RAM
CPU Socket
Chip
Application
MOQ
Warranty
Memory
Highlights at a glance
CPU Support LGA1155 Socket I3/I5/I7 series CPU Chipset IntelH61 Chinpet Memory 2*240pin DDR3SDRAM slots Memory up to 16GB Supports dual-chanel DDR3 1066/1333/1600MHz memory BIOS EFI BIOS I/O interface 1*HDMI 1*VGA 6*USB2.0,Compatible with USB1.0 1*RJ45 1*3 in 1 Audio port (line in/ line out/ mic in) Onboard interface 1*24pin ATX power connector 1*4pin ATX 12V power connector 1*USB connectors, can support 2*USB2.0 1*F-AUDIO connector 1*F-PANEL connector 1*SPEAKER connector 2*FAN connector 4* Serial ATA connection port Integrated sound with 6 chanel HD Audio Codec onboard provides front audio interface, provides front stereo mic interface Integrated LAN With 10/100Mbps LAN onboard Expansion slot 1*PCI Express*16 slot 1*PCIEX1 slot Dimension Micro-ATX architecture(17*19cm)
